PRINCIPLE

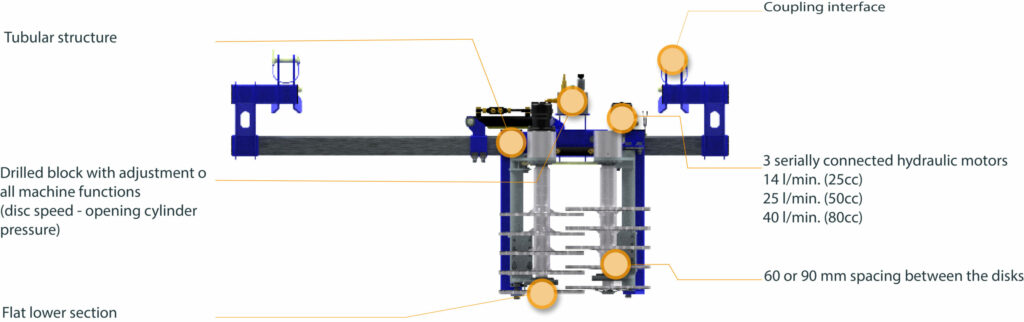

- A frame with two disc modules equipped with blades performing a shear cut. The discs are driven by 2 hydraulic motors. All pre-pruner functions are centralized in a hydraulic block.
- Cutting modules opening and closing is controlled by a control switch.
- Rotational speed of the discs is approximately 280 RPM for a flow rate from 35 to 70 l/min.
- Working speed up to 10 km/h.
- Available with a stack of 6 to 28 disks with an interval of 60 or 90 mm.
TECHNICAL SPECIFICATION
RANGE
Oméga
TYPE
MP 122
SPEED OF ROTATION
280 trs/min
WEIGHT
205 to 253 kgs
ADVANTAGES
- The shape of the disc ensures a good grip on the vine shoots and a regular feeding of the machine, without damaging the tying wires.
- The 60 mm interval between the disks furthers the cleaning of the tying wires thanks to the cutting sections mounted on a carrier disk whose thickness prevents the wire from penetrating between the teeth of the cutting sections.
- Reduced maintenance, lightweight and low flow rate.
- Reduced projections thanks to a low rotational speed.
- The bottom section of the discs is totally flat, preventing any stripping of the spurs.
- Working speed up to 10 km/h.
AUTOMATIC OPENING (OPTION)
- The optical detection operates for any type of post (wood, steel, concrete). There must be no leaves left. The system requires posts without holes in the reading axis and with a cross-section larger than or equal to 25mm.
- The inductive detection only operates with steel posts. But it allows pre-pruning immediately after the harvest, even if there are leaves.
