PRINCIPLE

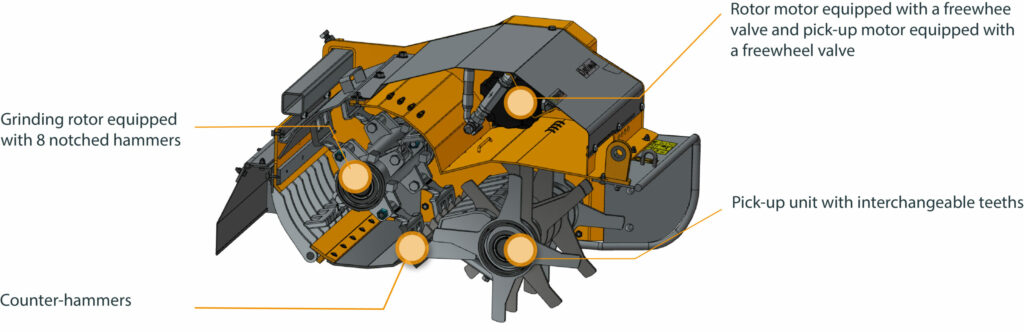

- The vine shoots are collected by a pick-up with removable teeth
and conveyed in a shredding chamber equipped with a rotor
with notched hammers and counter-hammers. - Once shredded, the shoots are ejected trough a refining grid.
TECHNICAL SPECIFICATIONS
RANGE
Narrow-spaced vineyards
MODEL
SP 50
FLOW RATE
25 l/min
WEIGTH
350 kgs
ADVANTAGES
- The teeth of the pick-up have a specific shape that improves the grip of the shoots and ensure a regular feeding of the shredding chamber.
- Interchangeable pick-up teeth.
- Possibility to operate the pick-up in the opposite direction (jam removal).
- A high rotor speed (3,000 RPM) and a counter-hammer ensure an exceptionally high performance and an optimum shredding fineness, even in extreme operating conditions (humidity, high shoot density).
- Quick coupling.
OPTIONS
- Collecting tines underneath the pick-up
- Counter-hammer
- Inlet 600 mm / 700 mm / 800 mm
- Refining grid 15 mm / 25 mm / 35 mm / 50 mm
- Rakes
