PRINCIPLE

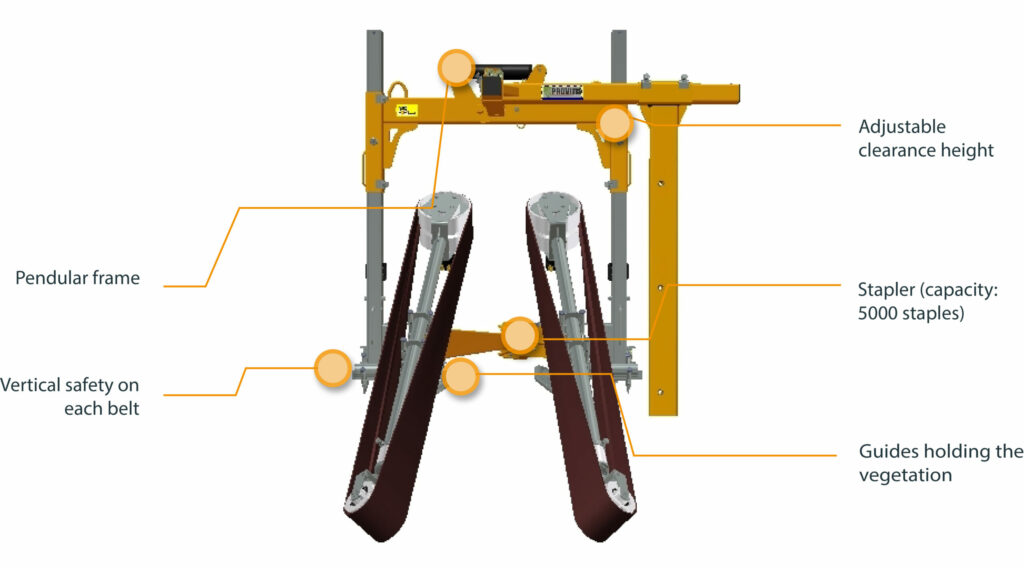

High-clearance frame equipped with a vine branches lifting device and a clip tying device. The branches are lifted by two wide belts driven by adjustable-speed hydraulic motors and equipped with independent safety devices. A wire is unwound at the rear of these belts, on either side of the row, to hold the branches in vertical position. These two wires are then clipped.
SPECIFICATIONS
RANGE
Optima
MODEL
PA 5000
FLOW RATE
17 L/min
WEIGHT
180 kgs
ADVANTAGES
- The rough belts allow optimum lifting of the branches, without constraint or aggressiveness. They also feature comprehensive setting possibilities (tracking, angle and spreading)
- The clip tying device requires little maintenance and setting. The clips are formed by two claws: this technology that prevents shocks and clogging.
- High autonomy (5,000 clips)
- Weight 180 kg
- Independent safety on each of the belts.
OPTIONS
- Pair of tips : This option prevents the belts from being damaged by rubbing on the ground.
