PRINCIPLE
- The vine shoot extractor VSE 230 has been specially and exclusively developed for double arched guyot vines.
- The VSE 230 features a high-clearance frame with, on the one side, prehension means and, on the other hand, gripping, extraction and shredding means.
- The gripping means comprise a worm screw and a brush that feed the vine shoots to two rollers arranged one against the other. These rollers are driven in the inlet direction, they grip and extract the shoots. When exiting the two rollers, the vine shoots are shredded and fall on the ground.
- The VSE 230 requires a 45 l/min flow rate and a double-acting function for the hydraulic spreading of the high-clearance frame. It weighs 350 kg and its working speed is of the order of 2 to 3 km/h.
TECHNICAL SPECIFICATION
RANGE
Optima
MODEL
VSE 230
FLOW RATE
45 l/min
WEIGHT
350 kgs
ADVANTAGES
- The extraction of the vine shoots from the bottom reproduces the manual operation and preserves the tying wires.
- The shredder is integrated.
- Remote and grouped lubrication of the various bearings.
- Operates for any type of posts and tying wires.

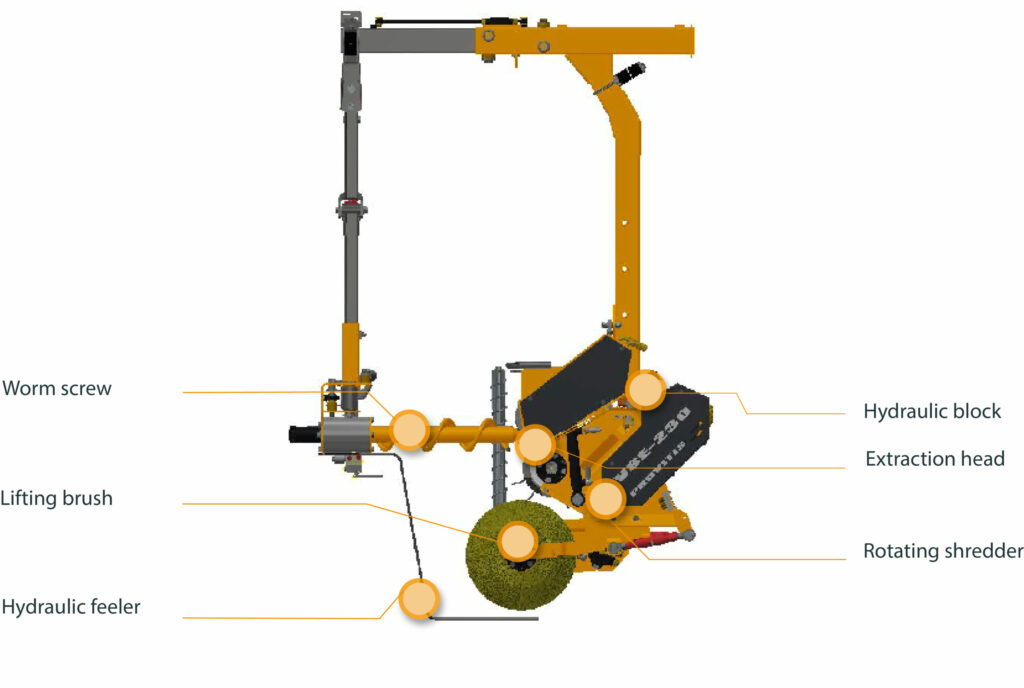

STANDARD EQUIPMENT
- Extraction head equipped with two extraction rollers and a shredder.
- Feeding worm screw on a pivot axis with hydraulic feeler.
- Lifting brush.
- Electro-hydraulic valves block for the control of all machine functions.
- Electrical control box.
- Centralized greasing.
