PRINCIPLE

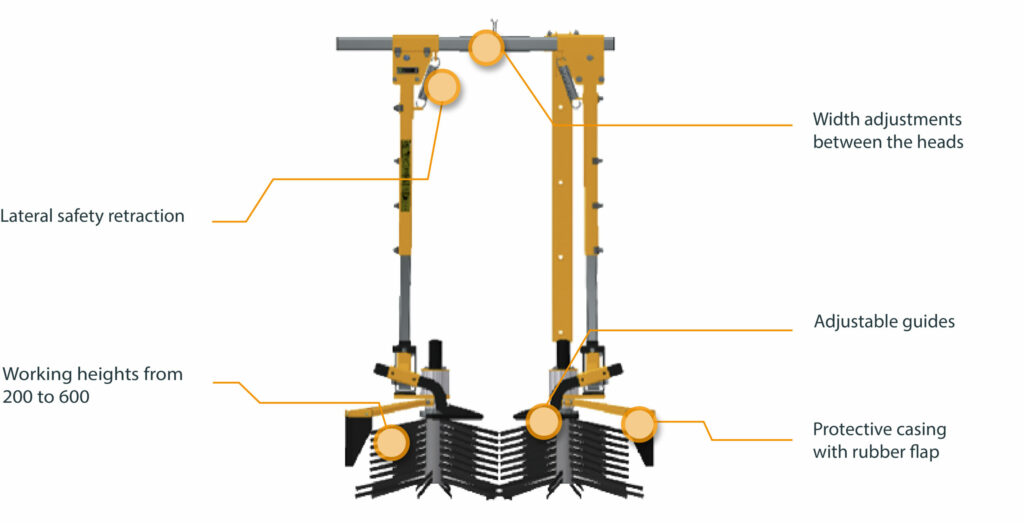

High-clearance frame equipped with two trunk cleaning heads. The vertically arranged trunk cleaning heads are made of a stack of rings in which special semi-rigid straps are inserted. The heads are driven by 2 serially connected hydraulic motors to perform trunk cleaning.
- Working speed approximately 3 km/h
- Required flow rate 5 to 20 l/min
TECHNICAL SPECIFICATIONS
RANGE
Optima
MODEL
SRB 22 RC
WORKING HEIGHT
200 to 600 mm
FLOW RATE
20 L/min
WEIGHT
170 kgs
ADVANTAGES
- The semi-rigid straps provide efficient cleaning without damaging the trunks.
- The two lower rings are equipped with 3 straps instead of 2 to increase the beating frequency by 30% on the base of the trunk, where most of the branches are located
OPTIONS
- Hydraulic trunk cleaning head spreading
- Hydraulic height adjustment of the external head
- STOP & GO: this option allows the operator to stop the rotation of the heads instantly to avoid hurting the young vine plants.
